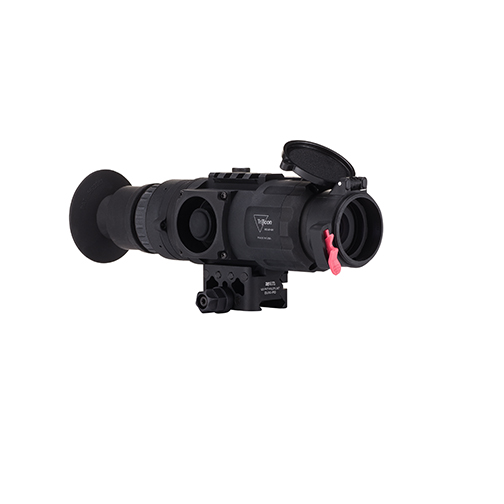

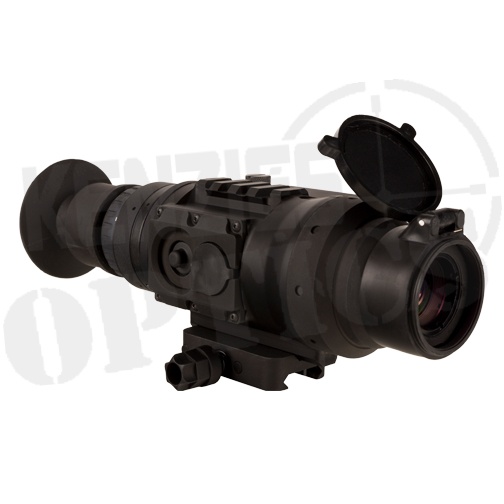

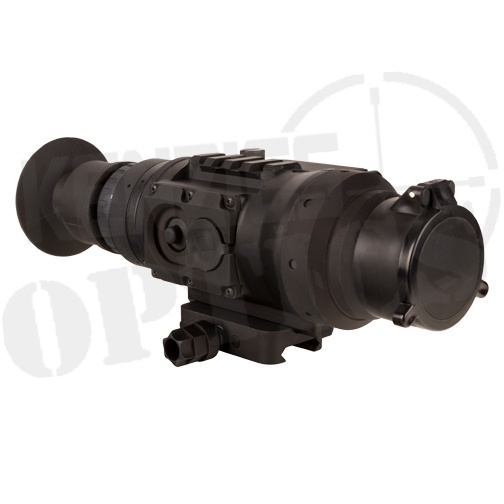

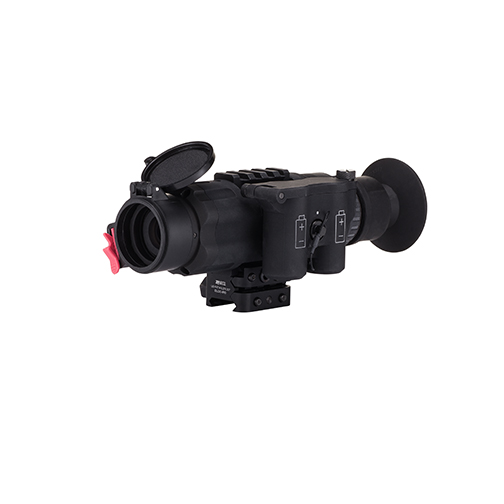

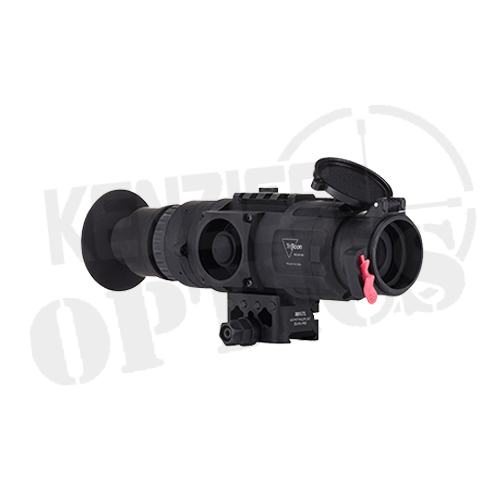

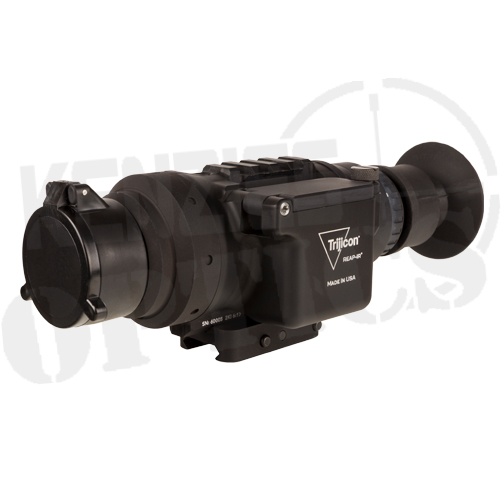

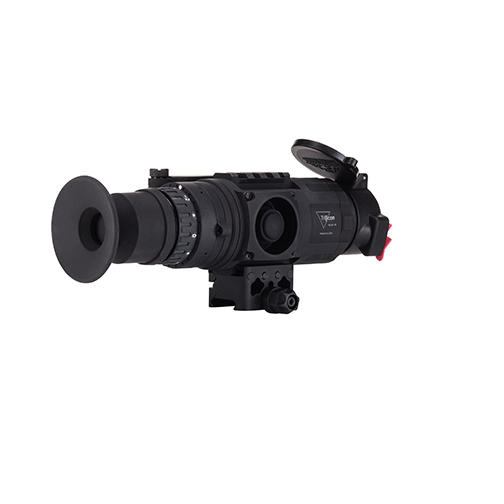

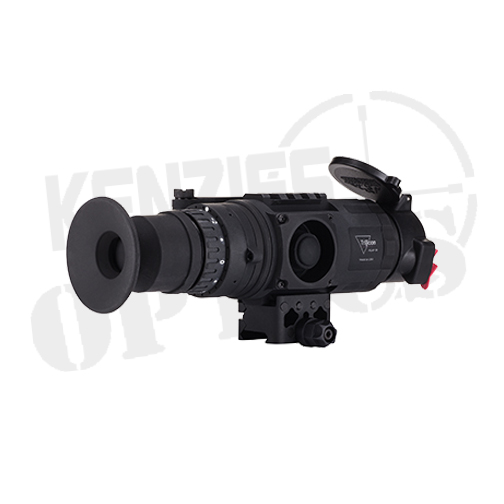

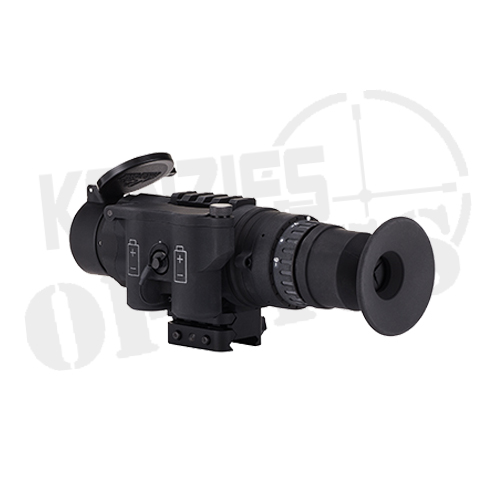

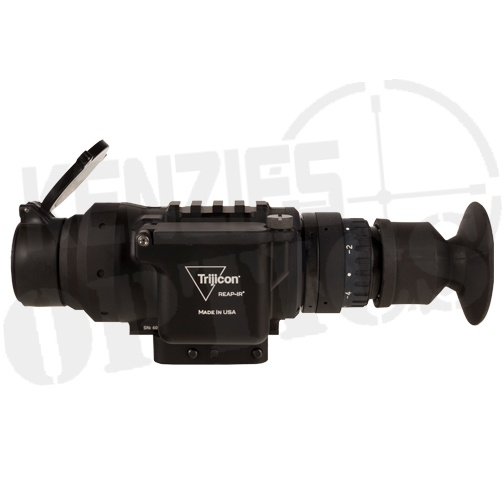

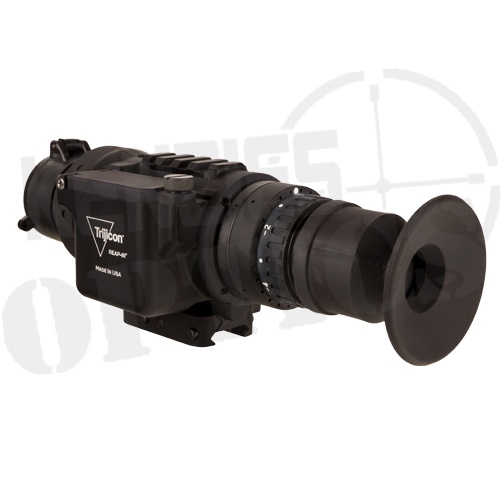

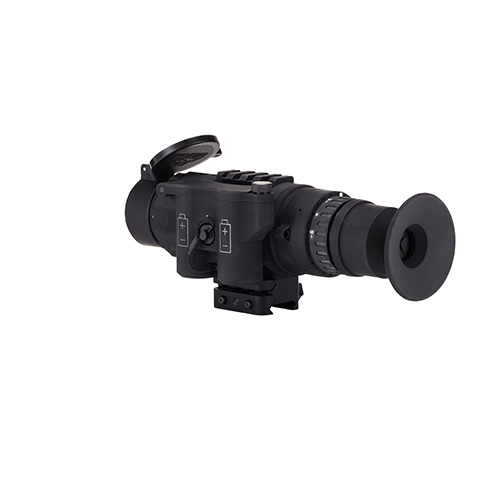

Trijicon REAP-IR 24mm Mini Thermal Scope
The Trijicon REAP-IR 24mm Mini Thermal Scope was designed to help the user to engage targets in any light. The small, rugged, and powerful scope features a state of the art 640×480 that is 4 times as many pixels as competing 320 systems, and 12 micron pixel pitch features a smaller footprint than the 17 micron systems. Redesigned electronic hardware and a new digital thumb stick improve system response and enables the use of external USB power sources and digital video recorders. It’s engineered to last and was built in the USA.
Trijicon REAP-IR 24mm Mini Thermal Scope Features
Specifications |
||||||
| Alaska to Africa Temperature Tested | To ensure each family of scopes is ready for whatever the users put them through, Trijicon perform “Alaska to Africa” temperature shock tests with temps from -20°F to 140°F | |||||
| Solid Zero Tested | Their scopes are designed to hold their zero giving you the precision you need. Every model is subjected to 5,000 consecutive rounds, confirming no reticle shift has occurred. | |||||
| Drop Tested | Trijicon doesn’t believe every drop should be followed by a warranty claim. Each scope design is put through a drop to check for durability. | |||||
| Shock & Vibration Tested | All scope models are tested to withstand recoil and vibrational stresses without malfunction, so it can take a beating before, during, and after use. | |||||
| Immersion Tested | All models are immersion tested, and every scope is dry nitrogen filled to eliminate internal fogging. | |||||
Specifications |
||||||
| A) Faster System Control
New and improved digital thumbstick provides improved system response |
B) Expanded Functionality
New USB-C connector allows the use of external battery packs and download of analog and digital video with available adapter with compatible DVRs |
|||||
| C) Premium Image Quality
New manual focus adjustment (60mm only) for improved image quality at all distances |
D) Vertical Battery Compartment Design
This vertical design creates a slimmer look and is engineered for increased durability and solid battery connection |
|||||
| E) Mounting Versatility
New quick release mounts featuring Trijcon Q-LOC Technology provides multiple mounting locations with the ability to affix the scope rapidly and reliably in the dark |
F) Improved Reticle Choices
User-selectable reticle choices include the classic crosshair, and new MRAD, MOA, 5.56 BDC, 7.62 BDC, and 300BLK BDC |
|||||
Specifications |
||||||
| Sensor Resolution | 640×480 | |||||
| Sensor Micron | 12mm | |||||
| Sensor Type | Vox Vanadium Oxide | |||||
| Frame Rate | 60 Hz | |||||
| Display Type | Digital OLED | |||||
| Thermal Sensitivity | < 50 mK | |||||
| Spectral Response | 8-12mm | |||||
| Field of View | 18° | |||||
| Eye Relief | 27mm | |||||
| Diopter | -6/+2 | |||||
| Optical Magnification | 1.2x | |||||
| Digital Zoom | 1-8x | |||||
| Combined Magnification | 1.2-9.6x | |||||
| Objective Lens | 24mm f/1.2 | |||||
| Battery Pack | Top Loading/Vertical | |||||
| Battery Type | (2) CR123 and/or External USB | |||||
| Battery Life | Approx. 4 hrs using (2) CR123 | |||||
| Environmental | -25.6°F (-51°C) to 122°F (50°C) Operating
-59.8°F (-51°C) to 160°F (71°C) Storage |
|||||
| Submersion | 1m/1hr | |||||
| Weight | 24.7 oz
(728g) |
|||||
| Dimensions (LxWxH) | 8.4 in. x 3.1 in. x 2.9 in.
(214.1mm x 79.3mm x 73.1mm) |
|||||
| User Interface | Joystick | |||||
| Mounting Kit | Mini Picatinny Rail Mount | |||||
| Easy Zero | Yes | |||||
| Image Capture | Yes | |||||
More from Trijicon
Celso Teixeira (verified owner) –
Works well. While it’s a little more expensive than other thermal vision options, it comes with the reliability and support you have come to expect from Trijicon. Thermal vision is basically a superpower at night. Easy zero works perfectly for me. The QD surprised me and is one of the best ones I’ve seen. The 19mm model offers a very wide view but it’s digital zoom ability does result in a loss of some resolution making the 19mm really only appropriate for scanning a wide area or fairly close range engagements. If you find you would prefer the 35mm or longer, Trijicon does offer an upgrade program.
