Vortex Diamondback HD 16-48×65 Spotting Scope – Multiple Options



For a limited time, save 12% on select Vortex products when you use code VORTEX12 in your cart!

Not valid with any other offers or discounts. Not valid on any products where this message is not found.

SKU: N/A Categories: , , Tags: ,

Available Options:

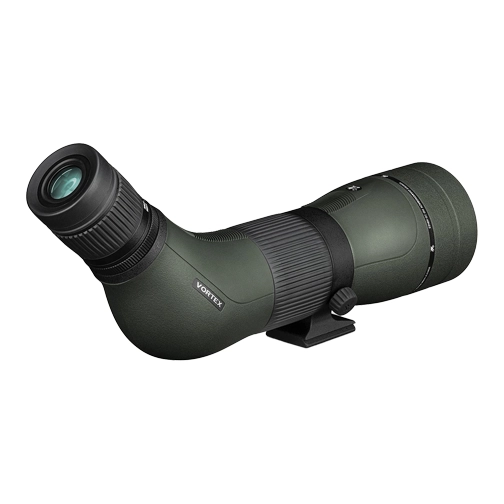

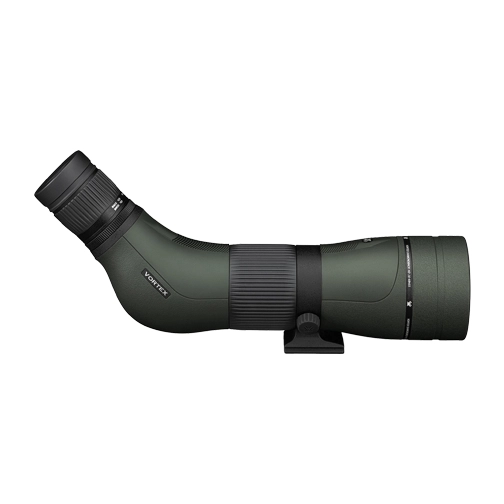

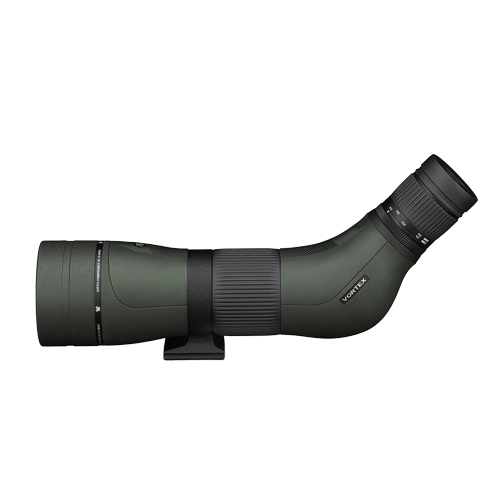

Vortex Diamondback HD 16-48×65 Spotting Scope

Evolution never looked so good with the Vortex Diamondback HD 16-48×65 Spotting Scope. The redesigned Diamondback HD spotting scope has all the horsepower that long distance hunters needs, and they excel in low light when you need it most. Vortex has also streamlined the exterior for a sleeker, snag free profile, building in a helical focus wheel. For the biggest hunt of your year, or your third time out this season, all the Diamondback HD spotters will deliver the power to focus on the thrill of your hunt.

Vortex Diamondback HD 16-48×65 Spotting Scope Features

HD Optical System

Optimized with select glass elements to deliver exceptional resolution, cut chromatic aberration and provide outstanding color fidelity, edge to edge sharpness and light transmission.

Fully MultiCoated

Increase light transmission with multiple anti reflective coatings on all air to glass surfaces.


Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.


O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments.


Rugged construction withstands recoil and impact.


Argon gas purging prevents internal fogging over a wide range of temperatures.

Rubber Armor

Provides a secure, non-slip grip, and durable external protection.

Adjustable Eyecups

Twist up and down for comfortable viewing with or without eyeglasses.

Helical Focus

Allows for fast and fine adjustments.

Arca-Swiss Compatible

Directly mounts to Arca-Swiss tripod heads without the use of additional plates. Also accepts 1/4-20 threads for use on alternate style tripod heads.

Tripod Adaptable

Allowing use on a tripod or car window mount. Tripod adapter required.

Rotating Tripod Ring

Allows rotation of the eyepiece to a sideways position, providing adjustable viewing angles.

Built in Sunshade

Reduces glare and shields the objective lens from raindrops and snow.

Product Manual



Magnification 16-48x
Objective Lens Diameter 65mm
Length 13.75 inches
Close Focus 16.4’
Field of View ft @ 1000 yds 138’ – 72’
Field of View (Angular)  263” – 1.38”
Eye Relief 20.3mm – 18.3mm
Exit Pupil 4.0mm – 1.35mm
Weight 50.4 oz
