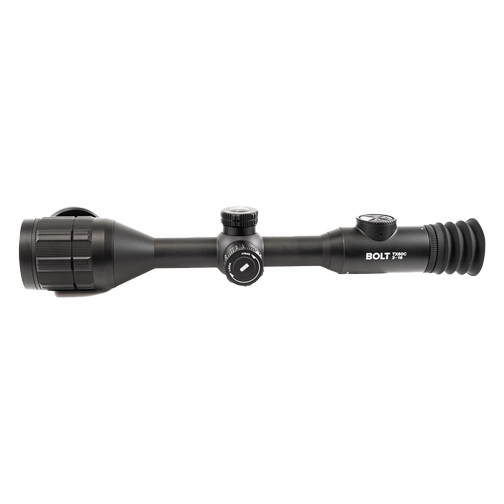

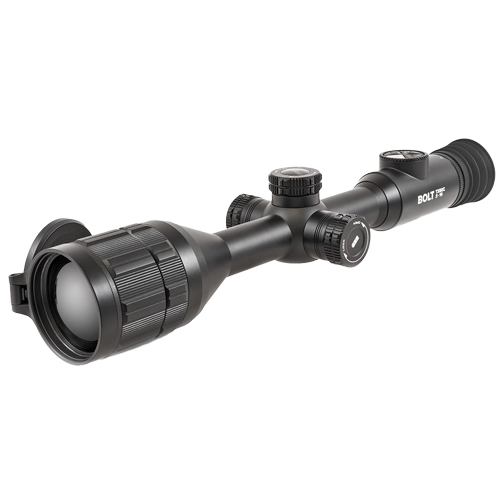

InfiRay Outdoor TX60C Bolt Action Optimized Thermal Optic
The InfiRay Outdoor TX60C was designed to provide hunters with a high resolution 1024×1024 InfiRay Micro II thermal sensor at a native 3x magnification and digital zoom up to 16x, ideal for predator hunting and long range shots. Increased resolution paired with a higher base magnification means less resolution is lost at higher zoom levels. A fast f/1.0 germanium objective lens, a sensitivity rating of ≤18mK, and a round v provide exceptional detail and precision. The round 30mm body design allows for easy mounting with the included one piece cantilever mount or standard scope rings. Wirelessly paired with the ILR-1200-1 Laser rangefinding module, the TX60C is capable of displaying real time ranges on screen and even calculating a firing solution using customizable projectile data and the onboard ballistic calculator.
Specifications |
||||||
Resolution | 1024×1024 | |||||
Pixel Size | 12𝝻m | |||||
Frame Rate | 50Hz | |||||
Sensor Sensitivity | ≤ 18mK | |||||
Image Processing | MATRIX III | |||||
Core | InfiRay Micro II 1024 | |||||
Objective Lens | 60mm f/1.0 | |||||
Magnification | 3x | |||||
Digital Zoom | 16x, Stepped | |||||
Field of View | 11.7° x 11.7° | |||||
Detection Range | 2700 yards | |||||
Display Type | 1.03 inch Large format AMOLED | |||||
Display Resolution | 2560×2560 | |||||
Color Palettes | White Hot, Black Hot, Red Hot, Color, Violet, Crimson, Viridian | |||||
Reticle Types | 7 (1 Dynamic, 5 Static, 1 DIY) | |||||
Reticle Colors | Black, White, Red, Green | |||||

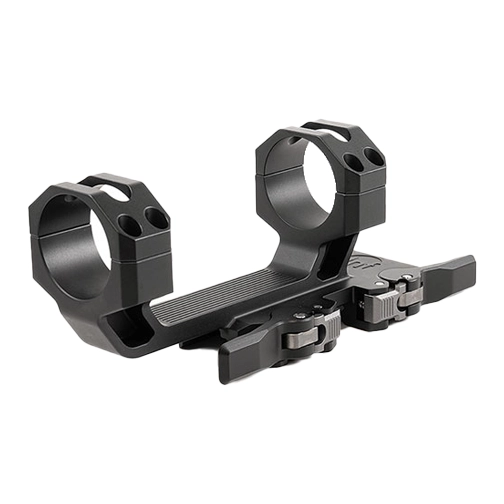

Mounting System | 30mm One-Piece Scope Mount or 30mm Rings | |||||
P.I.P. | Yes | |||||
Rangefinder | Stadiametric, Bluetooth ILR-1200-1 LRF (Optional/Not Included) | |||||
Eye Relief | 50mm | |||||
Diopter Range | -5 to + 3.5 | |||||
Onboarding Recording | Video, Recoil-activated Video, and Image | |||||
Onboard Storage | 128GB | |||||
Wireless Connectivity | Video and Image via App | |||||
Data/Power Connector | USB-C | |||||

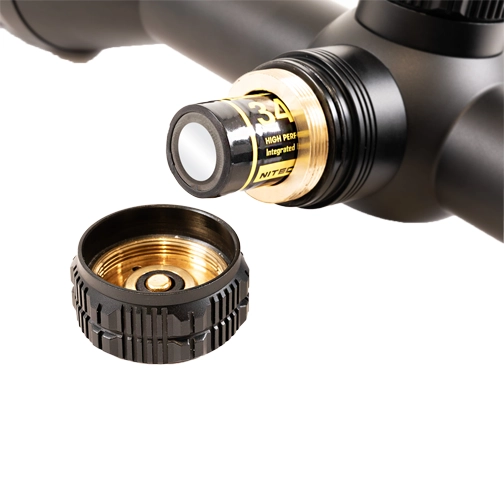

Power Supply | USB-C External, Built-in Battery Pack (8+ Hours), 18650 Battery (3.5+ Hours) 2x Included | |||||
Start Up Time | <10 Seconds, Instant from Standby | |||||
Size | 15.2” x 4.09” x 3.03” | |||||
Weight | 35.27 oz | |||||
Warranty | 5 years | |||||
Housing Material | T-6061 Aluminum | |||||
Ingress Protection | IP67 | |||||
Operation Temperature | -4°F ~ 122°F | |||||
Max. Recoil | 1000 G/s² (300 Win./7mm Mag) |
