Leupold Mark 4 12-40X60mm Tactical Spotting Scope
The Leupold Mark 4 12-40x60mm is a professional grade tactical spotting scope. The TMR reticle is ideal for any target identification because of its impressive clarity and brightness. Built to survive shocks, blows, drops, and impacts, it’s not only tough, it’s also 100% waterproof and fogproof.
Boasting Leupold’s Professional-Grade Optical System, it offers unmatched light transmission that’s designed to outperform in the most challenging lighting conditions. Its industry leading glare reduction provides a clear image in harsh, direct light, while the resolution and clarity will meet the demands of any professional guide or shooter in the field.
Countless military sniper teams have trusted the Mark 4 tactical spotting scope. You can depend on it, too. This rugged spotting scope is designed, machined, and assembled in the USA and is guaranteed for life.
Leupold Mark 4 12-40X60mm Features
Professional Grade Optical System
Leupold’s Professional Grade Optical System offers unmatched light transmission that’s designed to outperform in the most challenging lighting conditions, industry leading glare reduction for a clear image in harsh, direct light, and the resolution and clarity that professional guides and shooters demand in the field.
Folded Light Path
Folded light path technology helps achieve a compact, lightweight design.
Diamond Coat 2
Exterior lens surfaces are treated with DiamondCoat 2, an ion assist lens coating, for higher light transmission and the greatest level of abrasion resistance we’ve ever offered. DiamondCoat 2 has the additional advantage of assisting in light transmission, for greater brightness, clarity and contrast, and will prove its worth in the wildest places on earth.
A built-in 1/4-20 rotatable tripod adapter port makes it easy to mount to a tripod.
Lightweight but tough as nails, a rugged magnesium housing protects the optic during fast-paced action.
Waterproof and Fogproof
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures and elevation changes, so the internals of the optics stay moisture free and crystal clear for life.

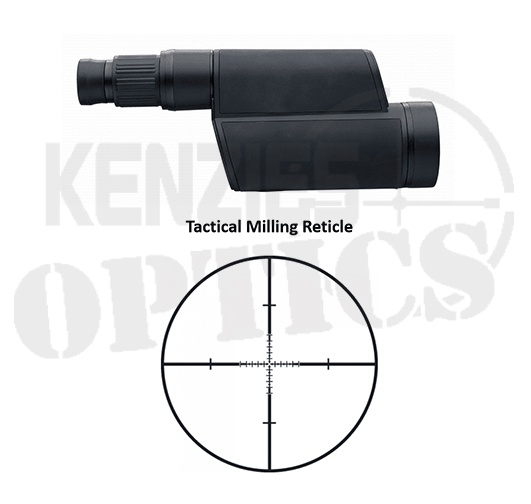

TMR (SPOTTING SCOPE) Reticle
Expands on existing MIL Dot reticle design
Utilizes hash marks instead of dots for increased ranging precision
1 MIL is approximately 3.6 inches at 100 yards
Hash marks are spaced 0.5 MIL apart, transitioning to 0.2 MIL spacing on the outer edges
Not caliber specific
MIL based systems are the current military standard
Front (first) focal plane
|Reticle||FFP TMR (Spotting Scope)|
|Objective Diameter (mm)||60|
|Linear FOV Low Mag ([email protected])||168|
|Linear FOV High Mag ([email protected])||52|
|Angular FOV Low Mag (Degrees)||3.2|
|Angular FOV High Mag (Degrees)||1|
|Eye Relief Low Mag (mm)||30|
|Eye Relief High Mag (mm)||30|
|Exit Pupil Low Mag||4.8|
|Exit Pupil High Mag||1.5|
|Close Focus Distance (ft)||36|
