Description
FREQUENTLY BOUGHT WITH
Born from Mil-Spec requirements and designed from the ground up, the NXS line of battlefield ready precision rifle hunting scopes stand ready to function flawlessly under the harshest extremes and meet your most demanding needs. The NXS family includes both compact and full size models. The compact models, including the 1-4×24 and 2.5-10x models, are your perfect choice for hunting dangerous game in the bush, running and gunning on a 3-gun course, or while on patrol. These compact NXS riflescopes offer the optimum balance between size, weight, and magnification. The NXS full size models continue with the military small arms based Nightforce NXS 3.5-15×50, our most proven long-range riflescope the 5.5-22×56, and push out to the extreme with the 8-32×56. From the proprietary Mil-Spec bonding agent incorporated in the optical mounting package which ensures no metal to glass contact, to the hardened bronze materials utilized in the adjustment and erector tube assemblies, the Nightforce NXS family of riflescopes define Rugged, Reliable, Repeatable.
Specifications |
|
| Focal Plane |
Second |
| Magnification Range |
3.5-15x |
| Objective lens diameter |
50mm |
| Tube diameter |
30 mm 1.18 in |
| Internal adjustment range MOA |
e: 65 MOA w: 45 MOA |
| Internal adjustment range Mil |
e: 17.7 Mil w: 12.3 Mil |
| Click value |
.250 MOA .1 Mil-rad |
| Calibrated Ranging Power |
15x |
| Parallax adjustment |
50 yd–∞ |
| Exit pupil diameter |
3.5x: 14.3 mm 15x: 3.6 mm |
| Eye relief |
99 mm 3.9 in |
| Field of view @100 yards |
3.5x: 27.6 ft 15x: 7.3 ft |
| Field of view @100 meters |
3.5x: 8.4 m 15x: 2.2 m |
| Objective outer diameter |
59 mm |
| Eyepiece outer diameter |
43 mm |
| Overall length (inches/mm) |
14.7 in 373 mm |
| Weight (ounces/grams) |
30 oz 850g |
| Mounting length (inches/mm) |
6.1 in 155 mm |
| Front/Rear Mounting Length |
2.39 in 2.09 in |
| Power Throw Lever |
Accessory |
| Reticles available |
MOAR™ MIL-R™ MIL-DOT |
| Illumination | Analog |
| Elevation Feature |
ZeroStop |

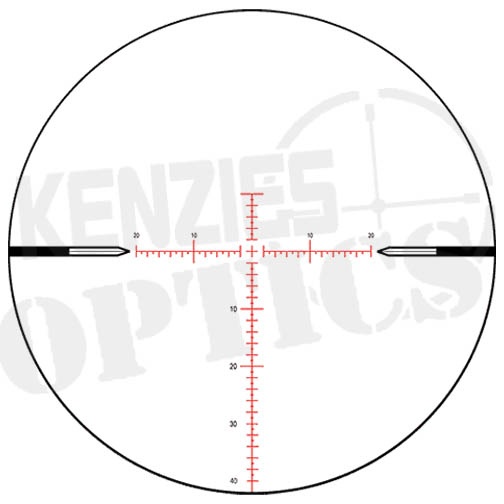

MOAR
With 1 MOA elevation and windage markings, more accurate range finding and hold-offs are possible on smaller targets at longer ranges. Combined with a floating center crosshair, this makes for a reticle extremely fast andeasy to use in the field. MOAR reticles in Nightforce 5.5-22x and 8-32x NXS models have a 20 MOA scale below centerline. Reticles in Nightforce NXS 3.5-15×50 models have an additional 10 MOA scale below center.
