Description

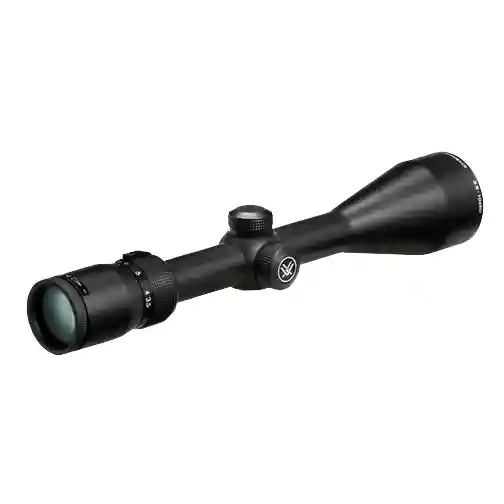

Vortex Diamondback 3.5-10x50mm Scope
The Vortex Diamondback 3.5–10x50mm is a scope that is loaded with features! It is constructed of solid one piece aircraft grade aluminum alloy making it virtually indestructible and highly resistant to magnum recoil. The Argon purging makes the scope waterproof and fog proof. It features a fully multi coated lens to protect against scratches and debris.

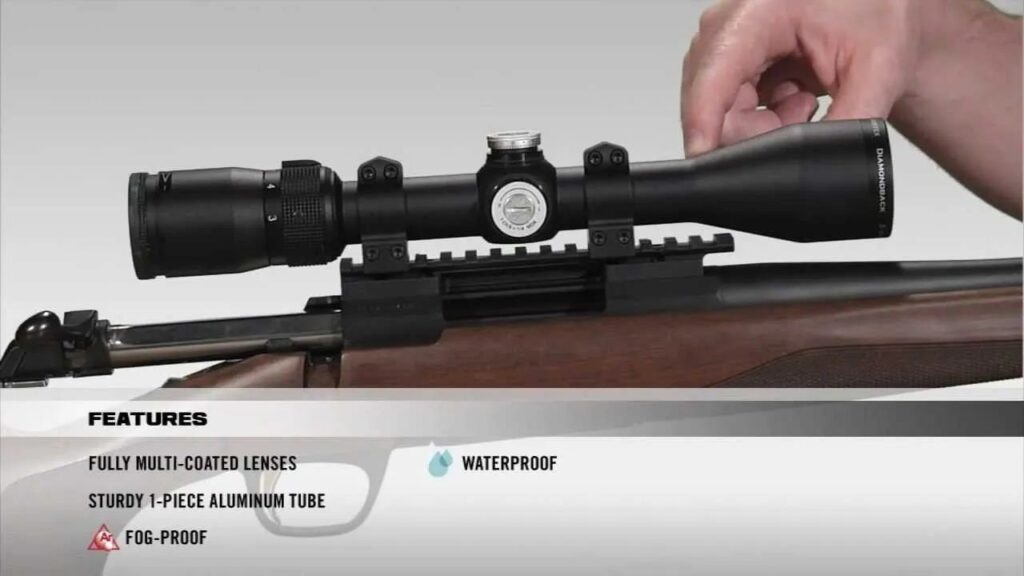

Diamondback 3.5-10x50mm Features
Fully Multi-Coated
Second Focal Plane Reticle
Tube Size
Single Piece Tube
Constructed of Aircraft Grade Aluminum
Waterproof, Fog Proof, and Shockproof
Hard Anodized Finish
Capped Reset Turrets
Precision Glide Erector System
Fast Focus Eyepiece
Specifications |
||||||
| L1 | 12.5 | |||||
| L2 | 2.15 | |||||
| L3 | 2.1 | |||||
| L4 | 5.48 | |||||
| L5 | 3.85 | |||||
| L6 | 3.1 | |||||
| H1 | 2.29 | |||||
| H2 | 1.69 | |||||
Specifications |
||||||
| Magnification | 3.5-10x | |||||
| Objective Lens Diameter | 50 mm | |||||
| Eye Relief | 3.3 inches | |||||
| Field of View | 35.8-13.5 ft/100 yds | |||||
| Tube Size | 1 inch | |||||
| Turret Style | Capped | |||||
| Adjustment Graduation | 1/4 MOA | |||||
| Travel Per Rotation | 15 MOA | |||||
| Max Elevation Adjustment | 65 MOA | |||||
| Max Windage Adjustment | 65 MOA | |||||
| Parallax Setting | 100 yards | |||||
| Length | 12.5 inches | |||||
| Weight | 16.2 oz | |||||
